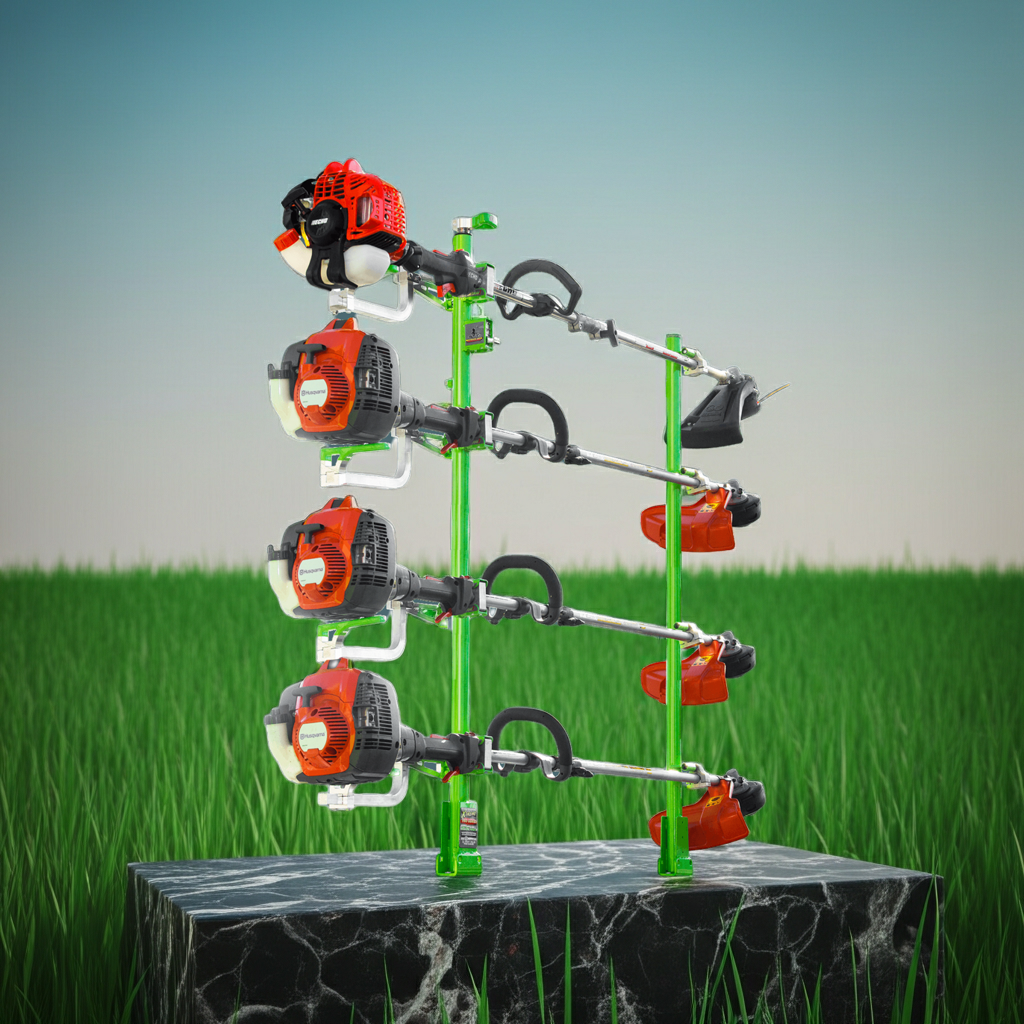

SECURE FOUR TRIMMERS WITH THE LEGENDARY STRENGTH OF OUR ARMORED-LOCK SYSTEM.
When you're running a full-scale commercial operation, you need maximum efficiency and maximum security. The XC104 is engineered to deliver both, providing an industrial fortress for four of your most valuable tools. This system eliminates transport damage and theft risks while offering the fastest equipment deployment in the landscaping industry.
KEY BENEFITS:
— UNCUTTABLE VAULT SECURITY: Patented steel housing completely envelops the padlock, shielding it from bolt cutters, grinders, and prying tools.
— MAXIMUM FLEET EFFICIENCY: Single-lock mechanism secures all four trimmers with one padlock, utilizing a spring-loaded handle for rapid one-handed access.
— ELIMINATE TRANSPORT DAMAGE: Includes four Engine Support Kits to immobilize every trimmer, preventing the bouncing and rotation that causes cracked engine housings.
Built for High-Production Operations
Maximize your trailer's capacity without sacrificing security. The XC104 (51-inch height) is constructed from heavy-duty steel and aircraft aluminum to handle the weight and vibration of a full gear set. Finished in our signature Valspar "Bright Parrot" (Code: 6011-7) Armor Coat with an automotive clear coat for elite weather resistance.
Professional Grade Durability
Experience the "Armored-Lock" standard. This rack is designed for the high-frequency use of professional landscaping crews, ensuring your equipment arrives at every job site in perfect operational condition.
What's in the Box/Kit:
+ (1) RACK: 4-Position Xtreme Pro Series Trimmer Rack.

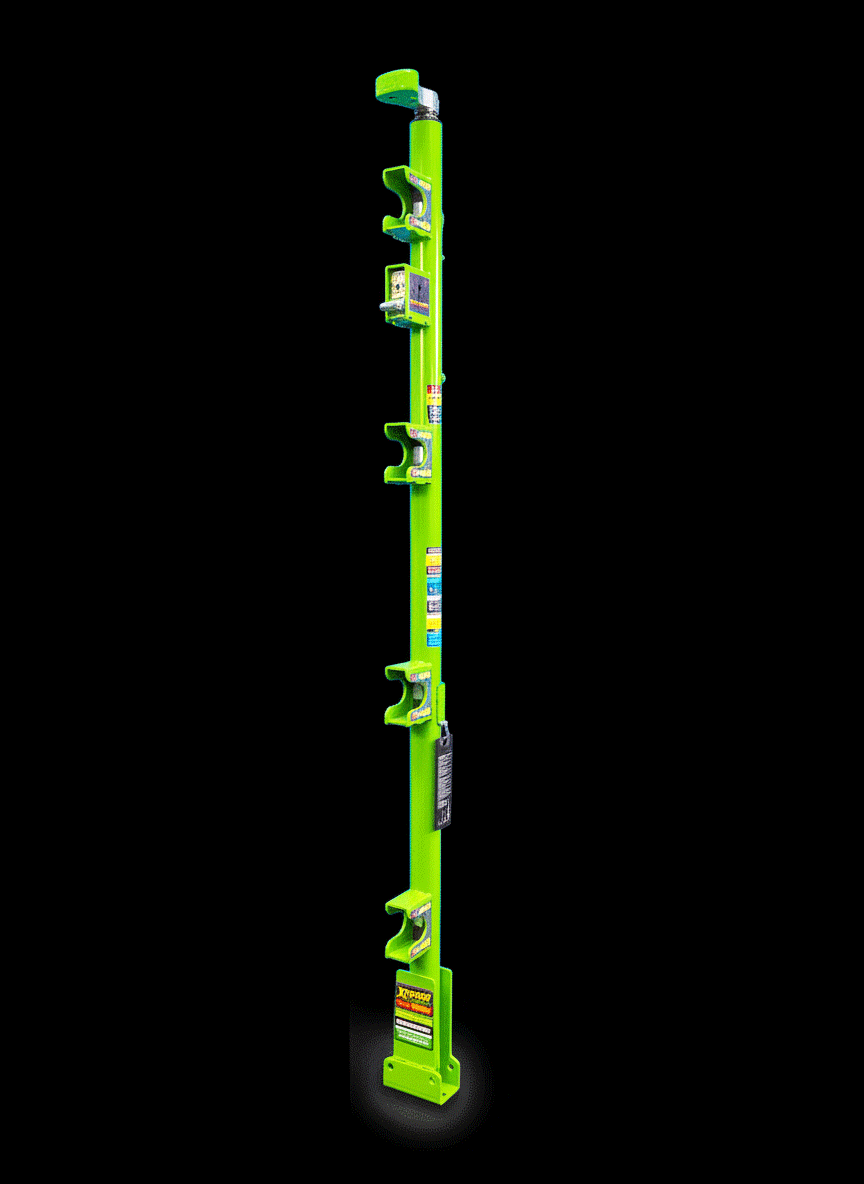

+ (1) LOCK: Patented Single-Lock Mechanism.
+ (4) KITS: Integrated Engine Support Kits.
+ (1) KIT: Complete Universal Mounting Hardware.
